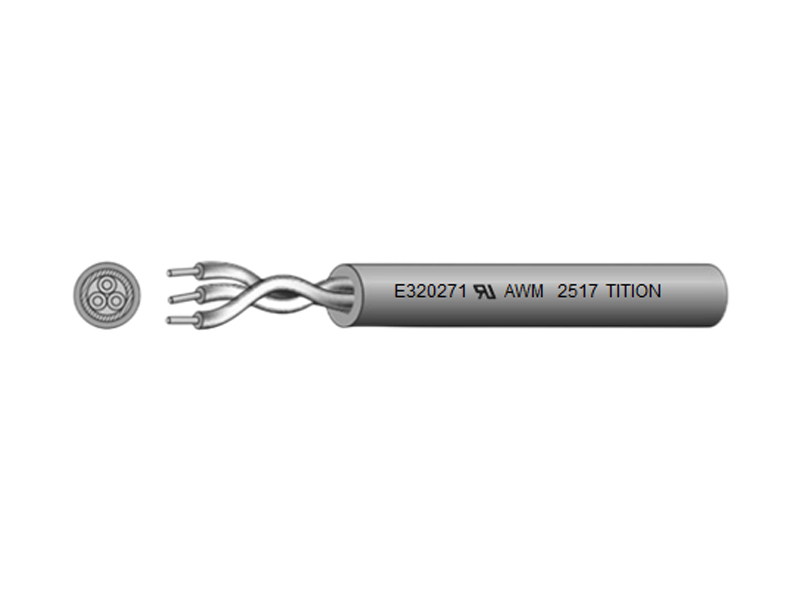

说明
额定温度：80℃
额定电压：300V
标准：UL758，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:聚氯乙烯
通过VW-1及CUL FT1垂直耐燃连线
环保要求：RoHS & REACH;
应用
产品广泛用于电器设备内部连接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 | 参考外径 | |||
| mm | mm | |||||
| 16 | 2× | 0.76 | 6.20 | 14.60 | ||
| 3× | 6.50 | |||||
| 4× | 7.10 | |||||
| 18 | 2× | 0.76 | 5.60 | 23.20 | ||
| 3× | 5.90 | |||||
| 4× | 6.40 | |||||
| 20 | 2× | 0.76 | 5.10 | 36.70 | ||
| 3× | 5.30 | |||||
| 4× | 5.80 | |||||
| 22 | 2× | 0.76 | 4.70 | 59.40 | ||
| 3× | 5.00 | |||||
| 4× | 5.40 | |||||
| 24 | 2× | 0.76 | 4.40 | 94.20 | ||
| 3× | 4.60 | |||||
| 4× | 5.00 | |||||
